As soon as the device is connected to the power supply and the power switch (Fig. 2, (2)) has been turned on, the STBY LED on the active loudspeaker lights up red. The speaker is then in stand-by mode.
5 difference audio sources can be connected to the active loudspeaker at the same time via the outputs (6), (7), (9), (10) and Bluetooth. The speaker is switched on using the remote control (Fig. 3, (13)) and an audio
source selected using the button (19). The volume is regulated via the button (14), the speaker can be switched to mute using button (18).
With the BASS (16) and TREBLE (15) buttons, the bass and treble levels can be adjusted to the set-up and your own personal listening taste. The LINEAR button is used to reset the bass and treble control to the neutral position.
Alternatively, the loudspeaker can be operated on the active speaker‘s rear connection panel (Fig. 2). Pressing the VOLUME/SOURCE control (11) the first time switches on the active speaker, pressing it again selects the inputs in turn. The volume is regulated by turning the control. Prolonged pressing switches the loudspeaker to stand-by mode.
Please note:
All MAGNAT loudspeakers are designed and built for optimum sound reproduction with the tone controls in the central position – i.e. with “linear” amplifier output. Turning up the bass and treble controls too far delivers more power to the woofers and/or tweeters, and at high volumes this can actually destroy the speaker units! Always turn the volume down immediately as soon as you hear distortion!

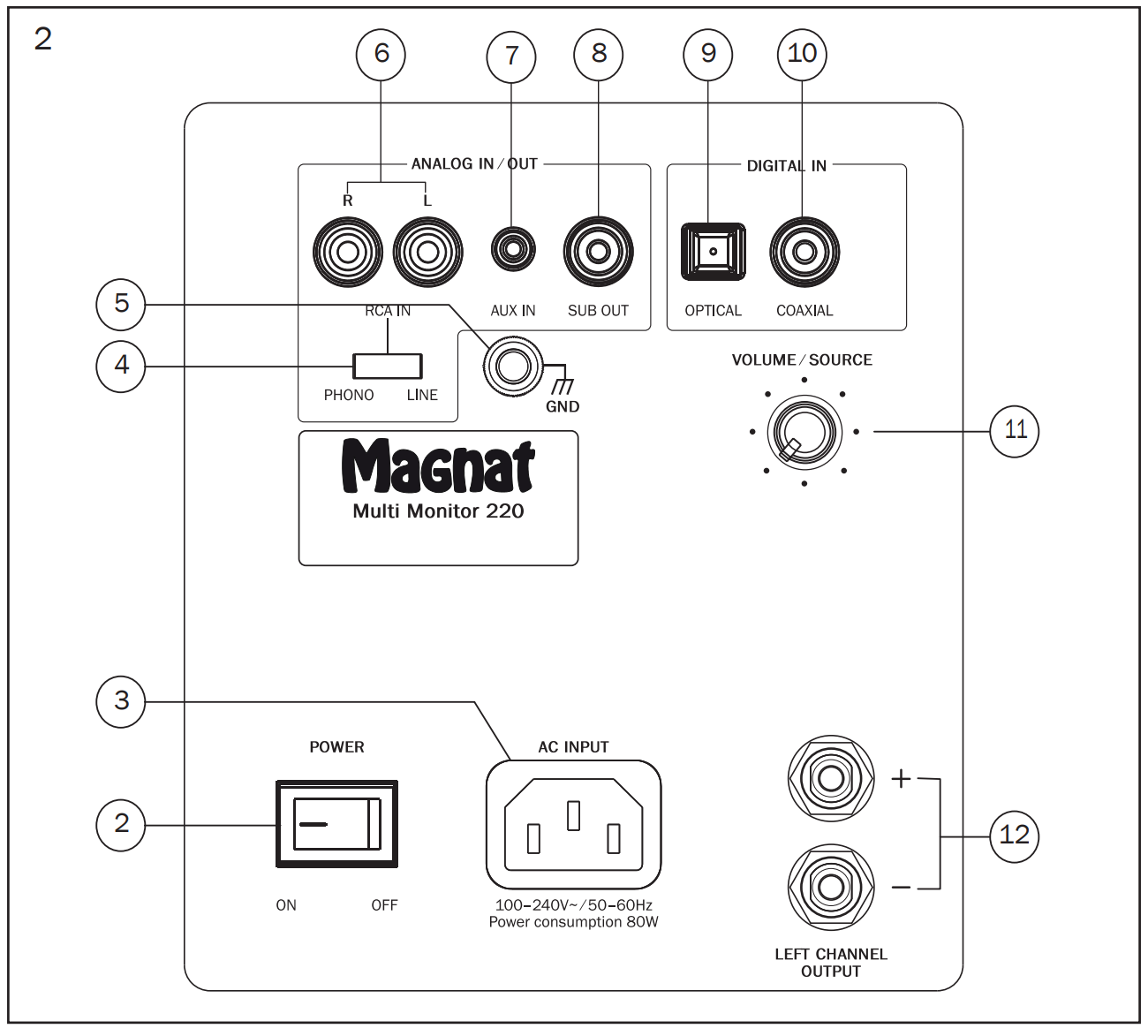

(2) Power switch
(3) Mains connection
(4) Switch PHONO/LINE
(5) Earth terminal GND
(6) RCA IN: Analogue stereo input (RCA jack)
(7) AUX IN: Analogue stereo input (3.5 mm jack socket)
(8) SUB OUT: Output for connecting an active subwoofer
(9) DIGITAL IN OPTICAL: Optical digital input
(10) DIGITAL IN COAXIAL: Coaxial digital input
(11) Rotary/push button for volume control and source selection
(12) LEFT CHANNEL OUTPUT: Connection for the left passive speaker
ATTENTION: The loudspeaker is equipped with an integrated amplifier and needs to be connected to a mains outlet by means of the supplied mains cable.

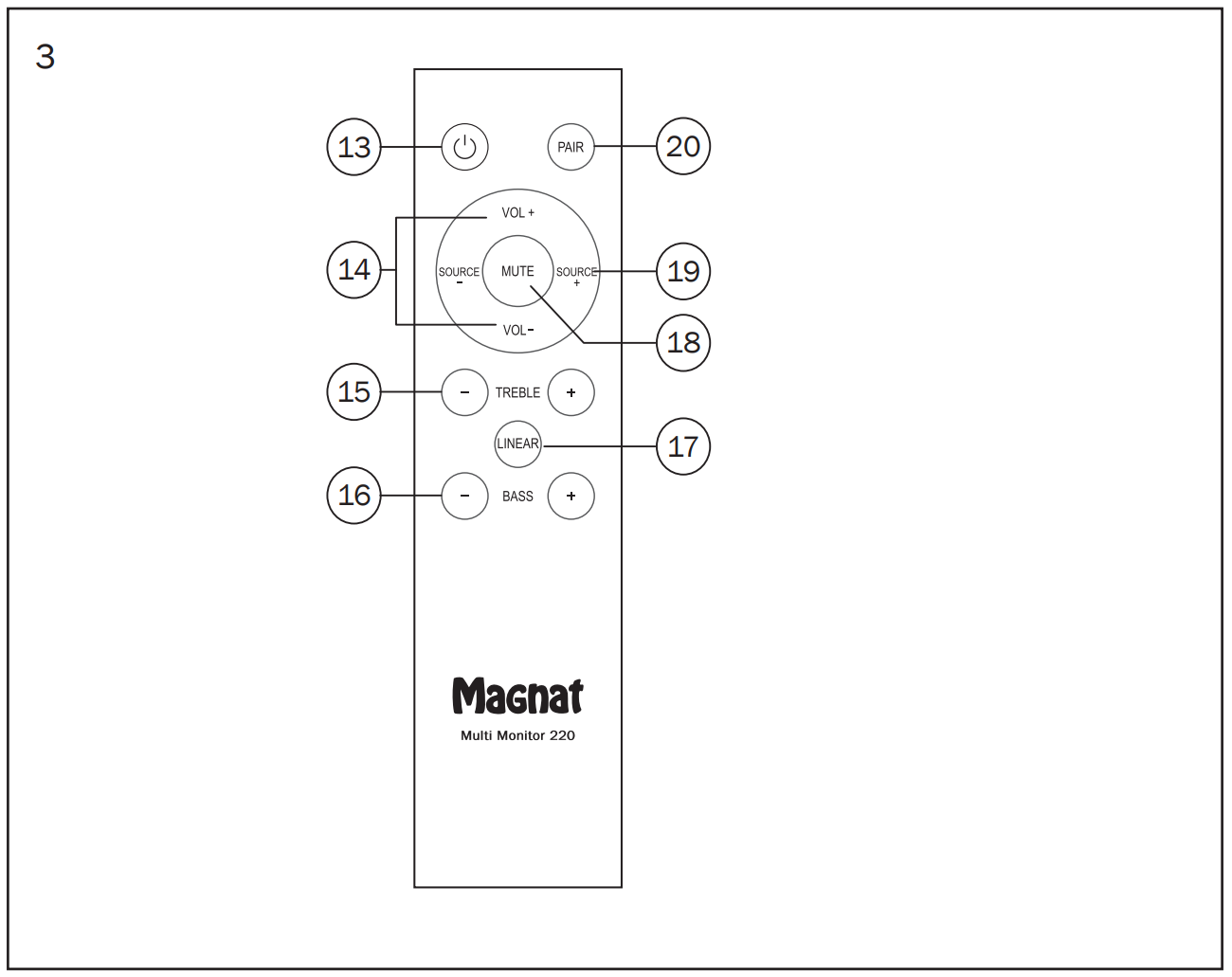

(13) ON/STBY: Switches the device on when it is in the standby mode. If the Standby-LED (fig. 1 (1)) does not illuminate, actuate the power switch (fig. 2, (2)) located on the rear. Conversely the device can be switched from power operation to the standby mode.
(14) VOLUME: Increases (+) or decreases (-) the volume.
(15) TREBLE: Increases (+) or decreases (-) the volume of high frequencies for manual adjustment of the sound pattern.
(16) BASS: Increases (+) or decreases (-) the volume of low frequencies for manual adjustment of the sound pattern.
(17) LINEAR: Resets all of the changes made to the frequency response (buttons 15 and 16) to a neutral setting.
(18) MUTE: Switches the sound on and off.
(19) SOURCE: Selects the audio input: PHONO/LINE, AUX IN, DIGITAL IN, BLUETOOTH
(20) PAIR: Switches the device to the pairing mode when in Bluetooth operation to establish a connection to a Bluetooth source device. The blue LED status indicator (Fig. 1, (1)) flashes quickly.
