Included in delivery is the most commonly used mains cable. The mains cable used in your country, however, may be different. If the mains cable is not compatible with your power sockets or if you are in any doubt, please contact your Magnat dealer.

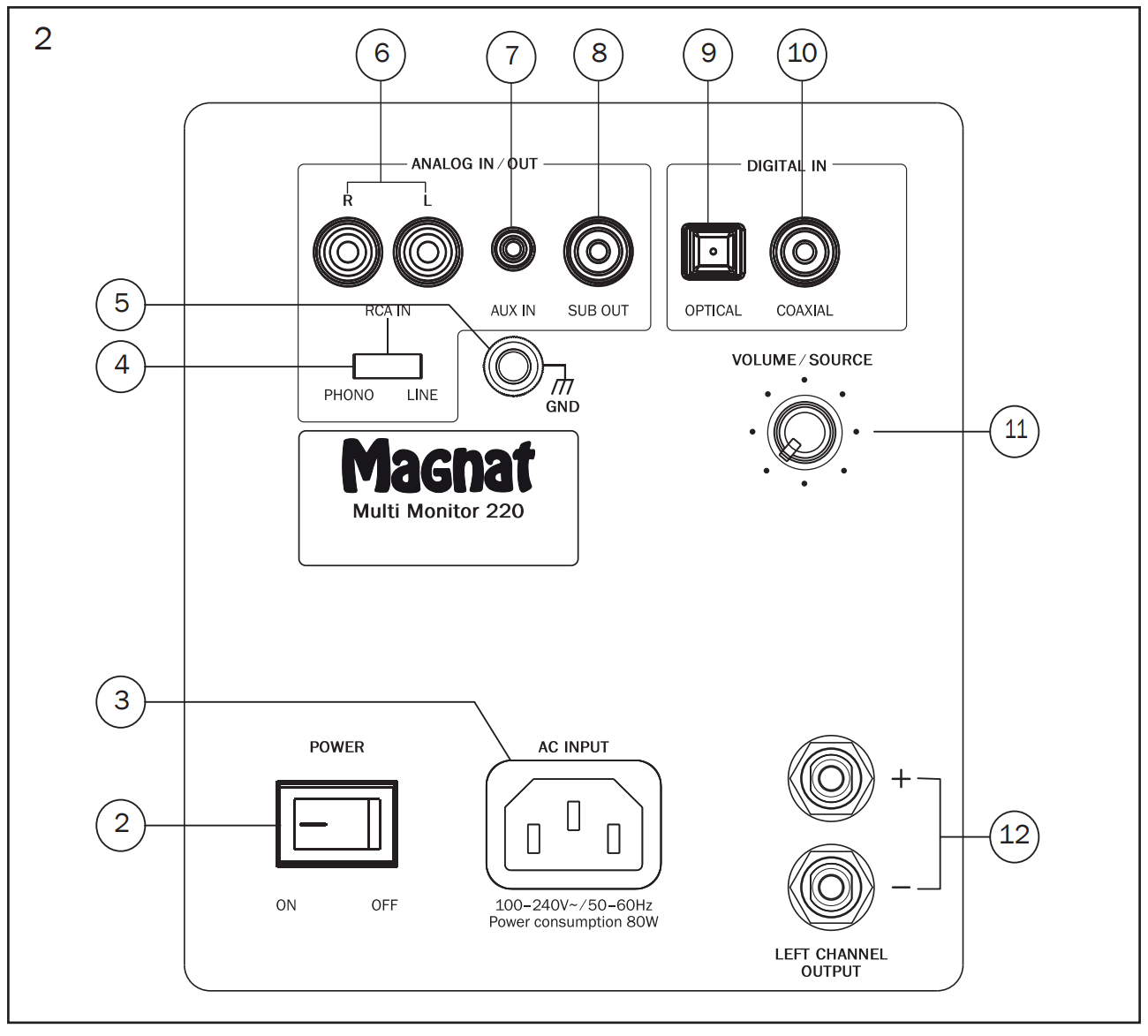

- Insert the 3-pin mains cable into the socket of the active speaker (Fig. 2, (3)).
- Insert the mains cable into the socket. Make sure that you are using the mains plug that is compatible with the socket (refer to the information above).
(2) Power switch
(3) Mains connection
(4) Switch PHONO/LINE
(5) Earth terminal GND
(6) RCA IN: Analogue stereo input (RCA jack)
(7) AUX IN: Analogue stereo input (3.5 mm jack socket)
(8) SUB OUT: Output for connecting an active subwoofer
(9) DIGITAL IN OPTICAL: Optical digital input
(10) DIGITAL IN COAXIAL: Coaxial digital input
(11) Rotary/push button for volume control and source selection
(12) LEFT CHANNEL OUTPUT: Connection for the left passive speaker
ATTENTION: The loudspeaker is equipped with an integrated amplifier and needs to be connected to a mains outlet by means of the supplied mains cable.
