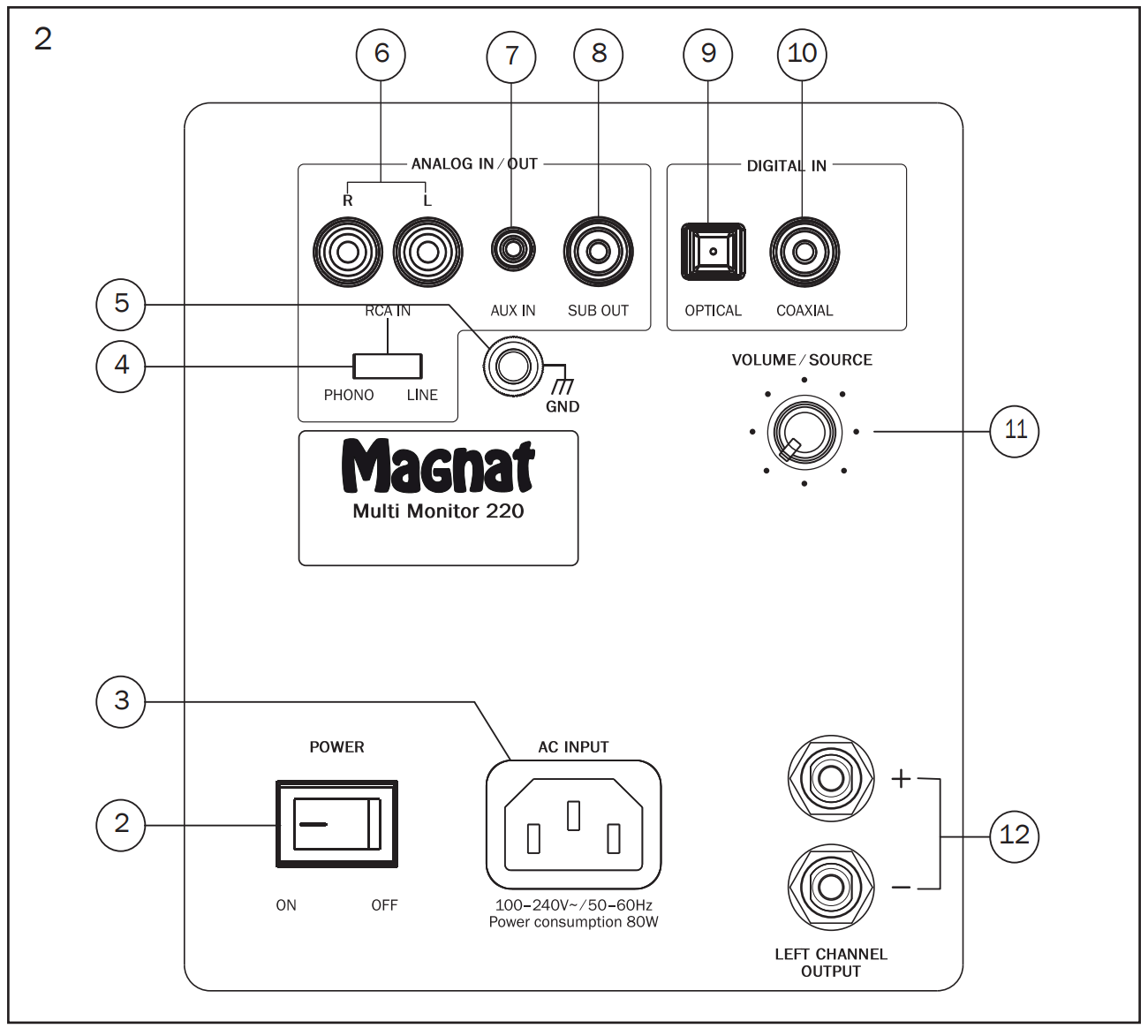

The active speaker has a subwoofer output (fig. 2 (8)) at the rear for controlling an active subwoofer. Use a mono audio cable and the LINE-IN input of the active subwoofer.
The subwoofer output has a low-pass filter with a cut-off frequency of 150Hz. This speaker is ideally suited for operation with an active subwoofer with a variable low-pass filter.
(2) Power switch
(3) Mains connection
(4) Switch PHONO/LINE
(5) Earth terminal GND
(6) RCA IN: Analogue stereo input (RCA jack)
(7) AUX IN: Analogue stereo input (3.5 mm jack socket)
(8) SUB OUT: Output for connecting an active subwoofer
(9) DIGITAL IN OPTICAL: Optical digital input
(10) DIGITAL IN COAXIAL: Coaxial digital input
(11) Rotary/push button for volume control and source selection
(12) LEFT CHANNEL OUTPUT: Connection for the left passive speaker
ATTENTION: The loudspeaker is equipped with an integrated amplifier and needs to be connected to a mains outlet by means of the supplied mains cable.
