Interior Quantum - Acoustic Adaptation

The crossover facilitates individual sound adjustment of the speaker system via high-quality jumpers:

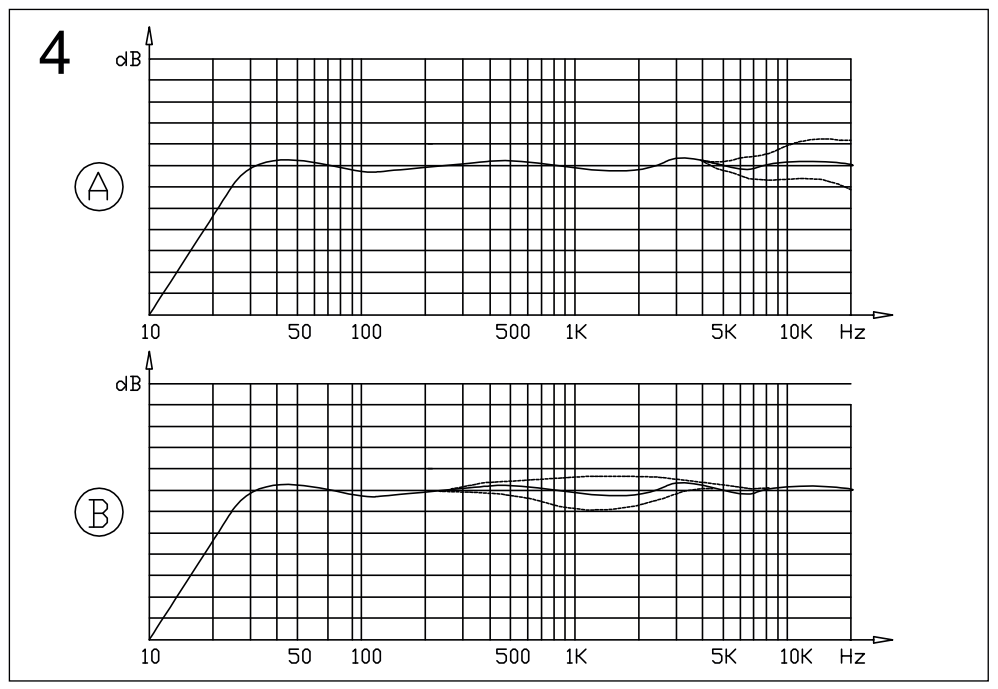

1. Tweeter level adjustment (treble) (fig. 4A)

2. Mid-range adjustment (woofer) (fig. 4B)

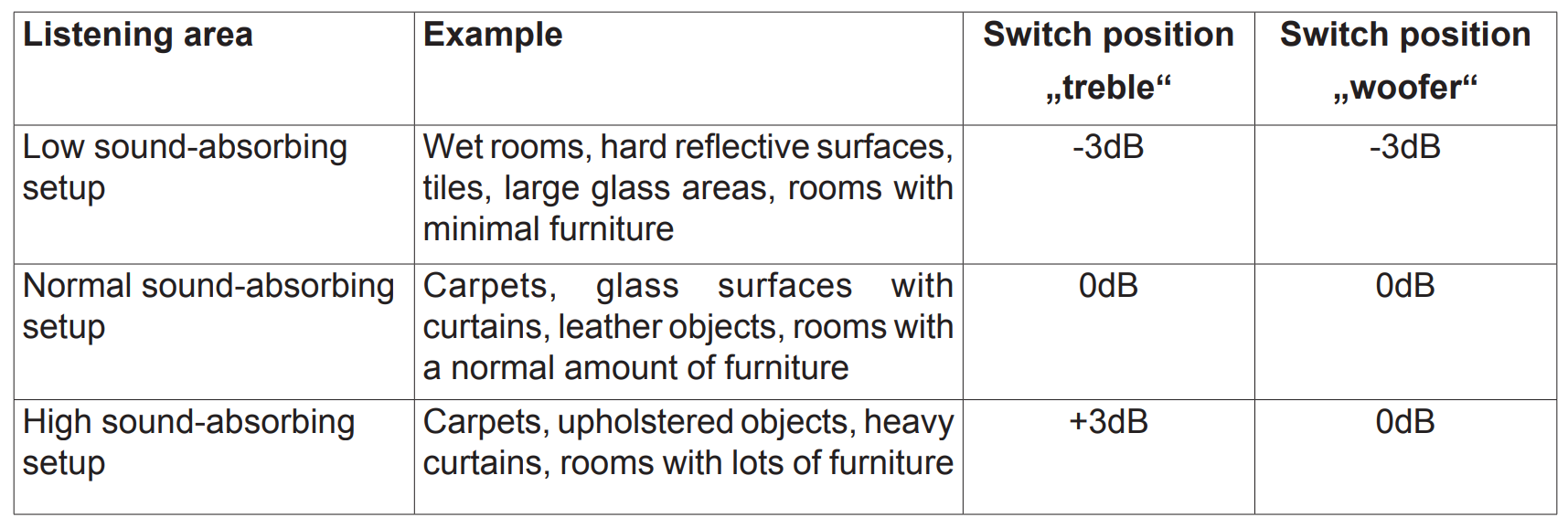

It is advisable to conduct the optimum setting according to your own personal listening preferences. We
recommend the following switch positions as a basic setting for various listening areas:

The tweeter‘s „swivel“ technology allows it to be pivoted by up to 35 degrees, thereby enabling ideal sound dispersion and perfect alignment to the listening area.
