Symbol X 130/160 - Mounting

A) Secure the wall bracket/base plate (3) to the wall by using the wall plugs (8) and screws (7) supplied.  Use the wall bracket as a template to mark out the drill holes. When doing this, make sure everything is horizontal.

B) Secure the wall bracket (part 1) (2) together with the wall bracket (part 2) (4) to the rear of the speaker; do not tighten the screws (9) yet. Align the speaker as desired and tighten the screws (9).

C) Secure the speaker together with the already mounted wall bracket (part 1) (2) to the wall bracket/base plate (3) by using the screws (5). Do not tighten the screws initially here either. Align the speaker as desired and tighten the screws (5).

To ensure stability, the supplied rubber feet should be attached to the bottom of the box (four per box) if the loudspeakers are used without wall brackets.

The Symbol X loudspeakers are IPX5 proofed and widely resistant to moisture so that they may also be used outdoors and in damp rooms. Observe the following points in order to ensure perfect functioning over the long-term:

• Do not expose to direct sunlight and permanent humidity (e.g. rain) for extended periods of time.
• Only use at temperatures ranging between 0 °C and +40 °C.

THE FOLLOWING PARTS ARE INCLUDED IN THE SCOPE OF DELIVERY:

1. Symbol X loudspeakers (2 pcs.)
2. Wall bracket part 1 (2 pcs.)
3. Wall bracket part 2 (2 pcs.)
4. Wall bracket base plate (2 pcs.)
5. Hexagon socket screw M5 x 45 mm (4 pcs.)
6. Washer (4 pcs.)
7. Fastening screw 4 x 53 mm (6 pcs.)
8. Plug 8 x 40 mm (6 pcs.)
9. Hexagon socket screw M5 x 21 mm (4 pcs.)
10. Washer (4 pcs.)
11. Hex Key 4 mm
12. Rubber feet (8 pcs.)

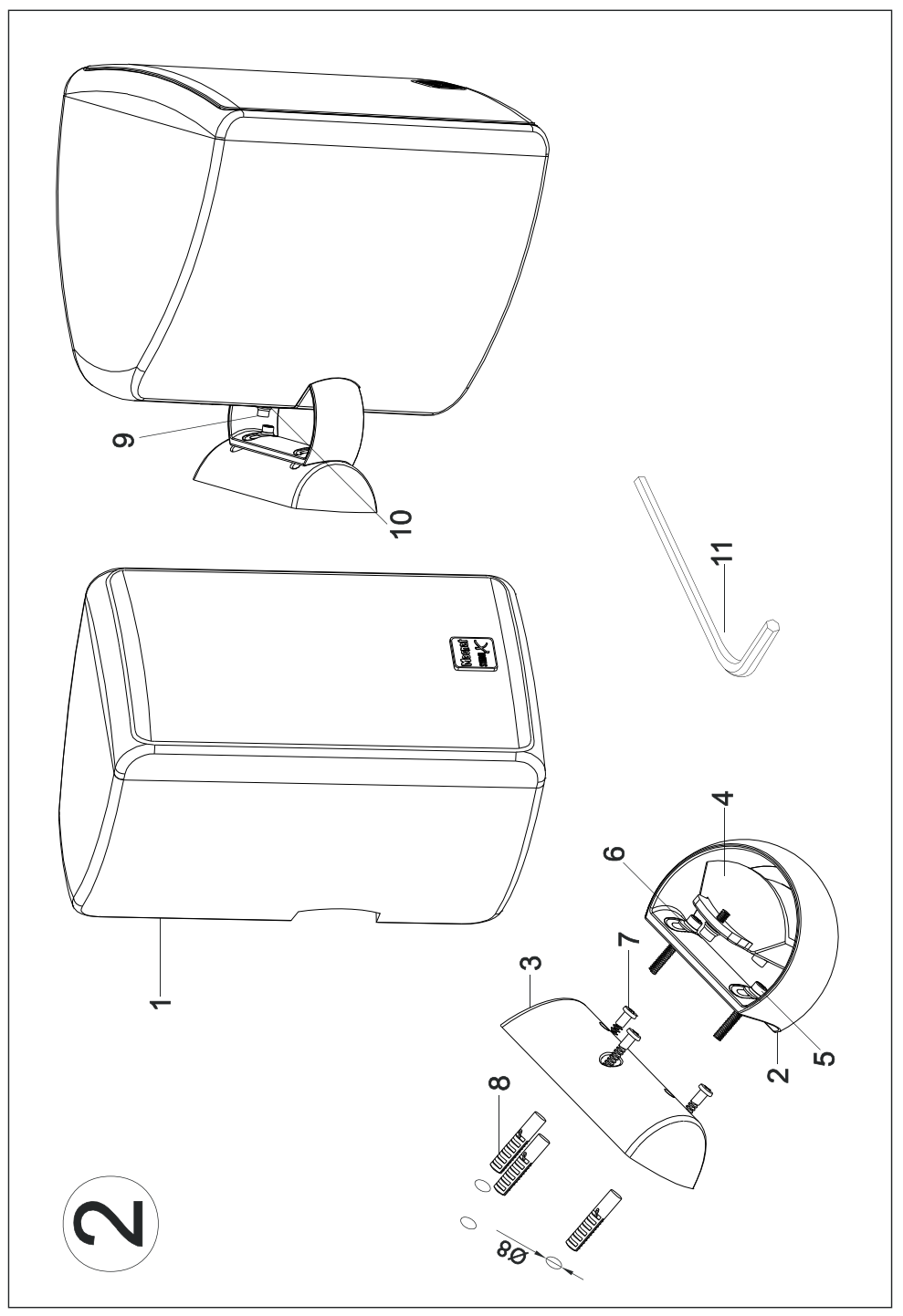

Fig. 2 shows the function of the wall bracket and how to mount it.  Please note that the speakers can also be mounted horizontally. In this case, the Magnat logo on the grille can be rotated by 90°.

Pull the logo forwards slightly and rotate it in the desired direction.
