Alpha RS-8/12 - Inputs

Line inputs (6)

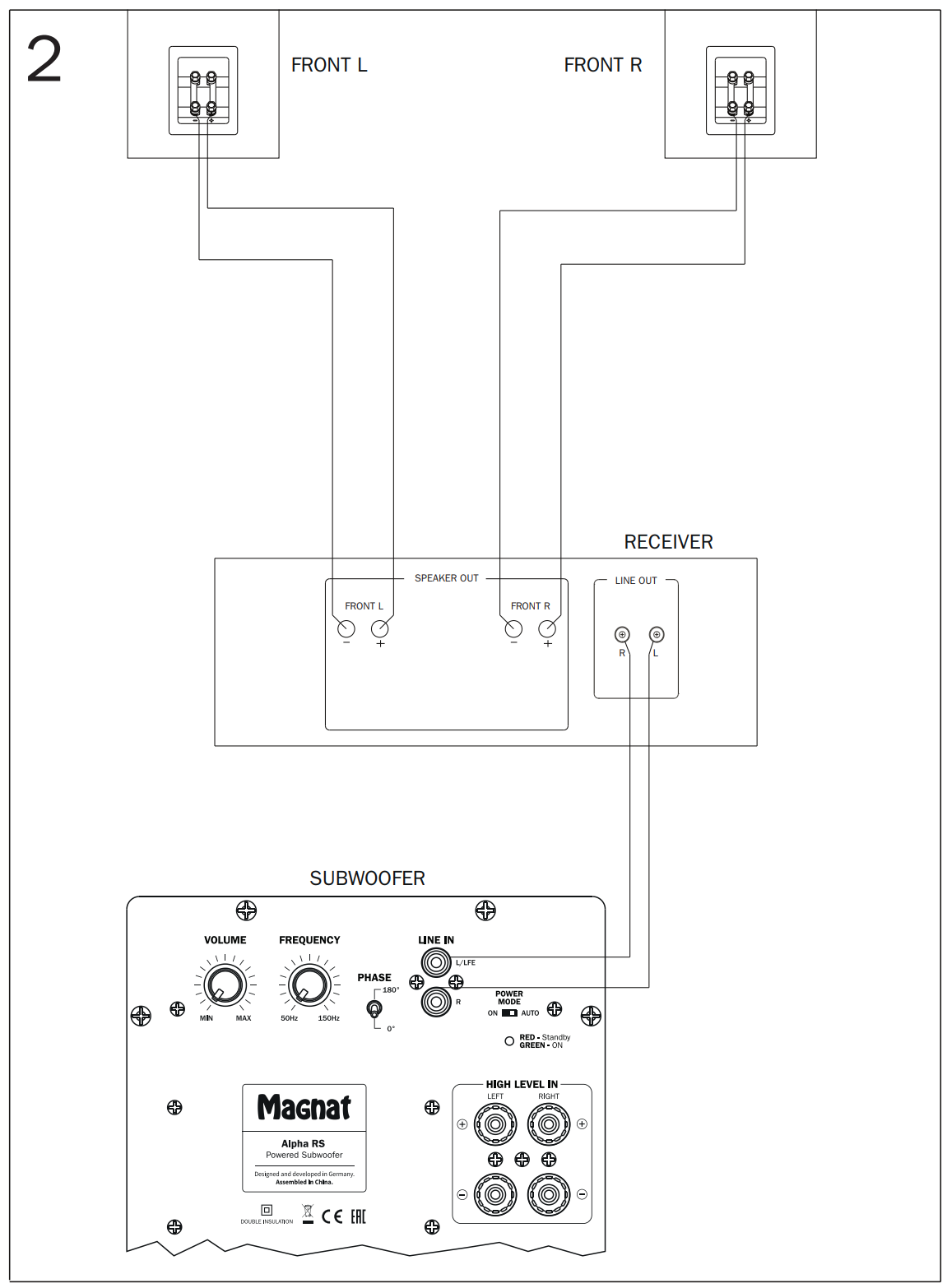

For connecting to level outputs on a receiver/amplifier (stereo mode), see Fig. 2.

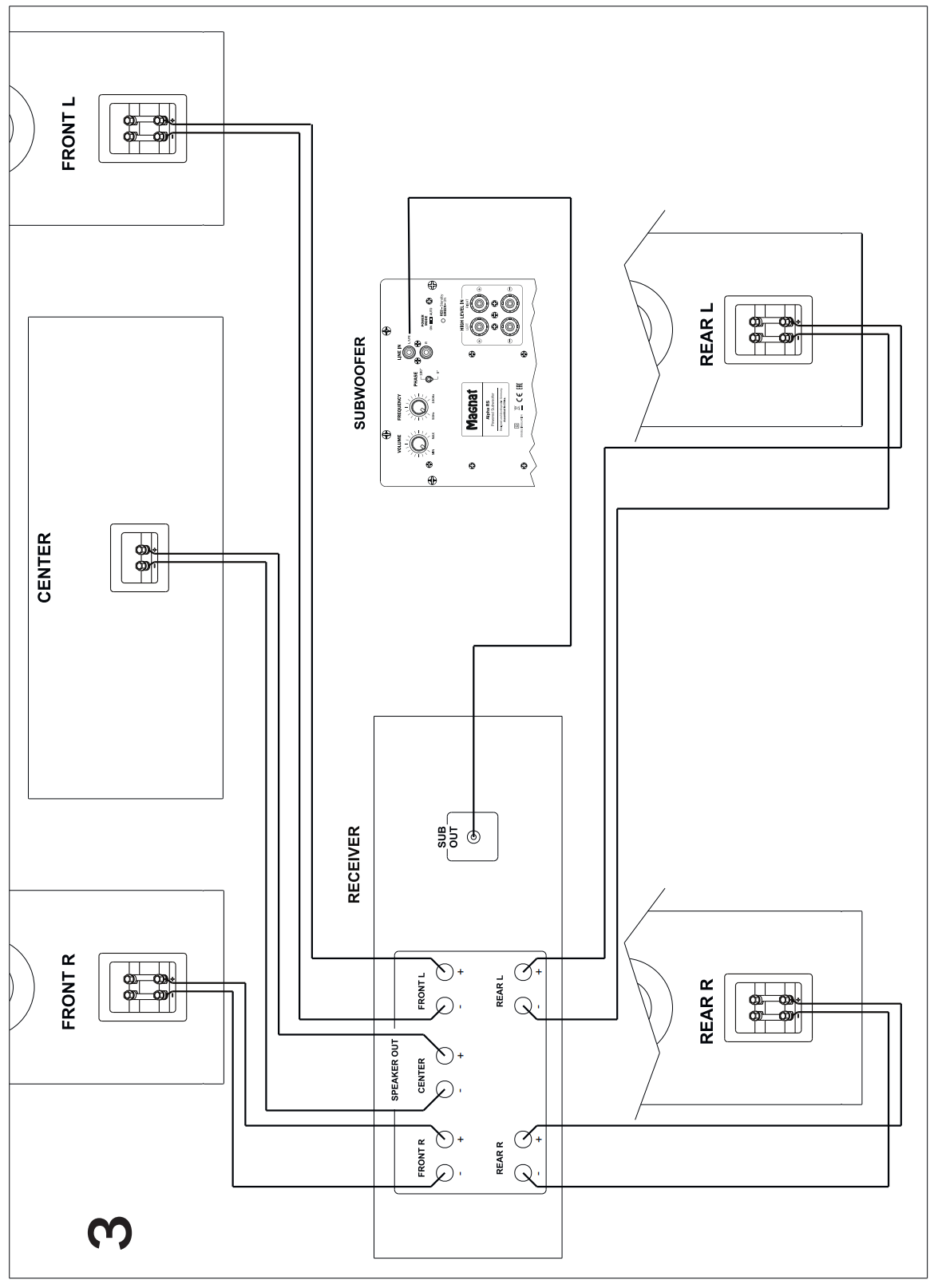

For connecting to an AV receiver with low-level subwoofer output, see Fig. 3.

High-level inputs (7)

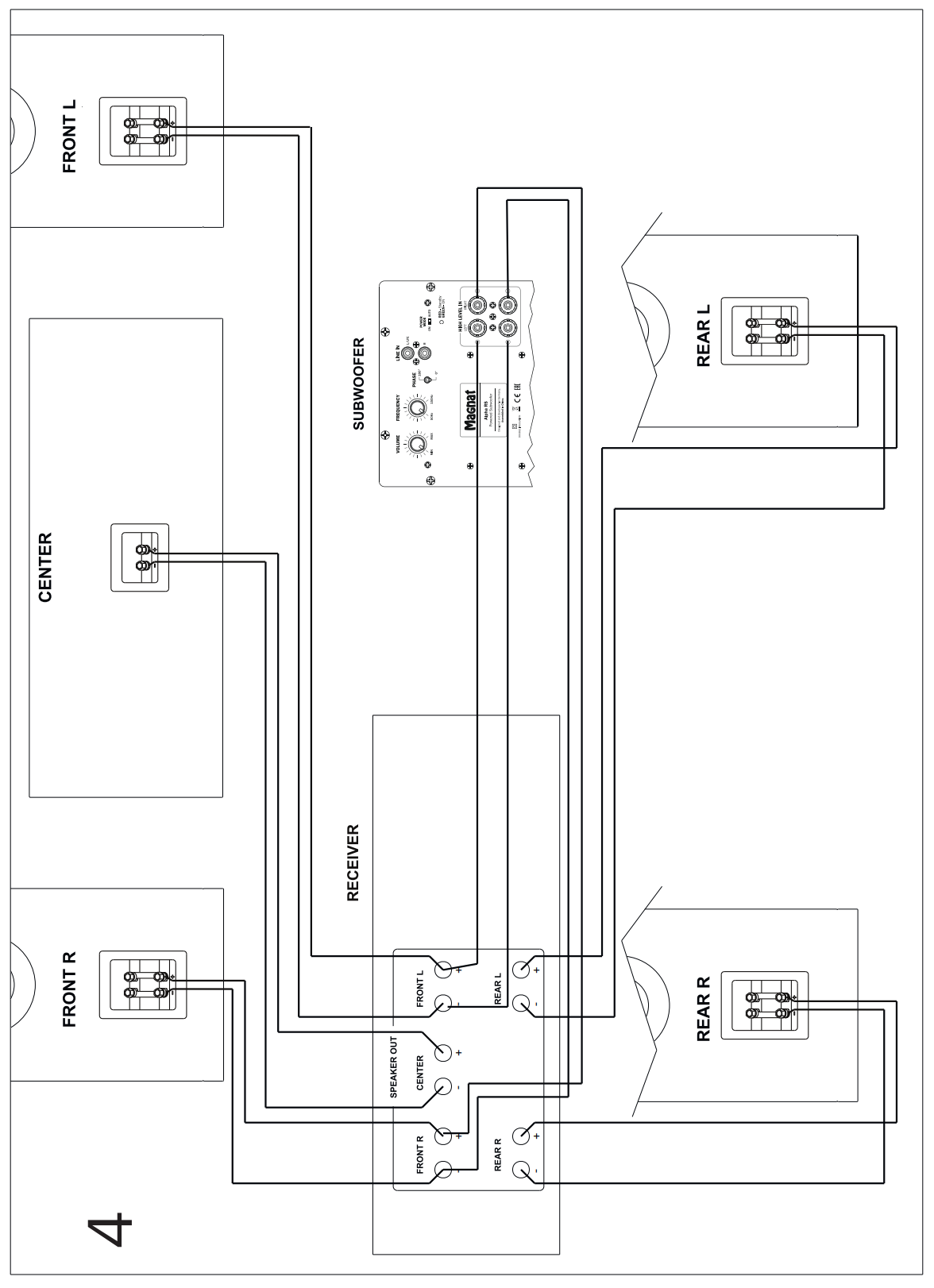

For connection to the high-level (speaker) outputs of the receiver/amplifier, refer to Fig. 4.
