MT-990 - Mounting the Dust Cover

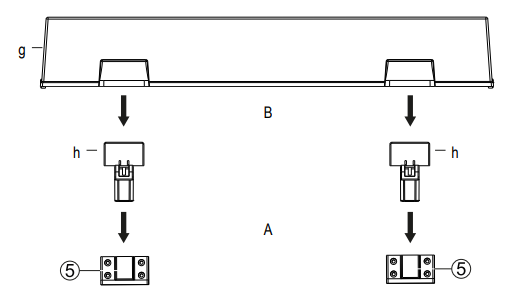

Take the hinges (h) for the dust cover out of their packaging and insert their narrow side into the slots at the rear of the turntable as shown.

Now carefully slide the dust cover (g) onto the wide side of the hinges.

Attention: Please open and close the dust cover slowly and carefully during playback (lowered stylus) in order to avoid mechanical shock.
